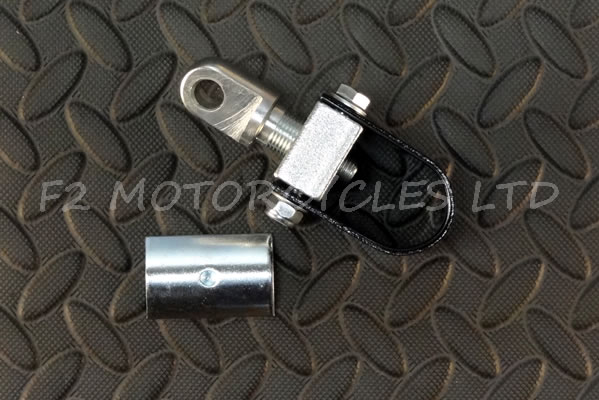

UNIVERSAL FRAME CLAMP - VELOREX
The unique clamp design adjusts to fit any tube from 27mm to 32mm diameter. Thickness of the eye 11.9 mm. Eyelet hole is 12 mm
SCV/3 - £55.20

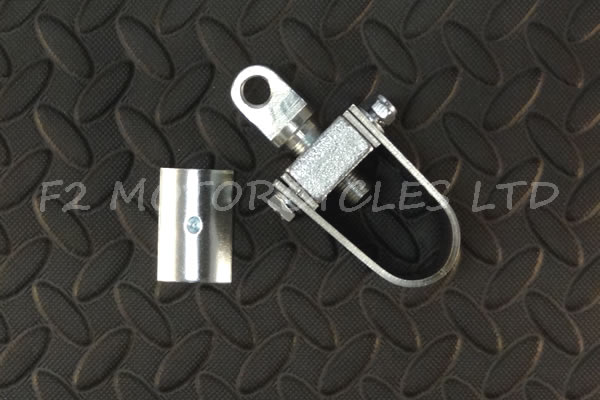

UNIVERSAL FRAME CLAMP - LARGE
The unique clamp design adjusts to fit any tube from 32mm to 40mm diameter. Thickness of the eye 11.9 mm. Eyelet hole is 12 mm. Main strap made from 304 grade stainless in the UK.
SCV/4 - £72.00

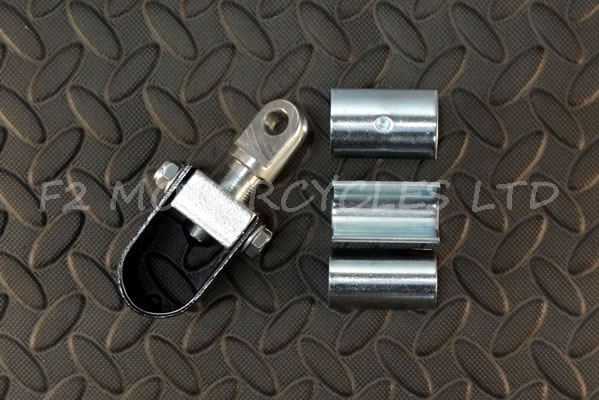

UNIVERSAL FRAME CLAMP - SMALL
The unique clamp design adjusts to fit any tube from 25mm to 26mm diameter. Thickness of the eye 11.9 mm. Eyelet hole is 12 mm. This is SCV/3 plus a pair of shims to allow fitting to a smaller diameter tube often found on British bikes.
SCV/10 - £72.00

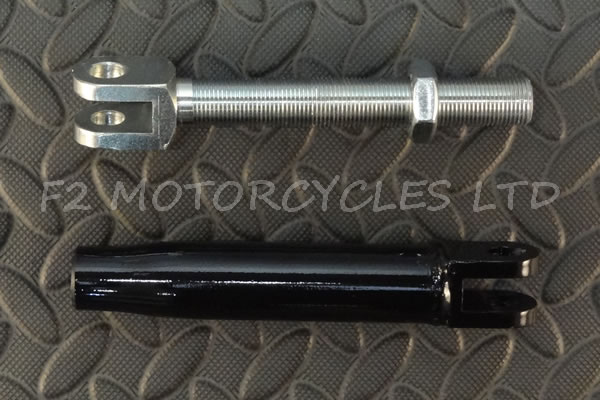

SHORT ADJUSTABLE PROP
SCV/6 short prop total length 160 mm
SCV/6A short adjuster total length 160 mm
SCV/6 and SCV/6A combined eye to eye minimum length 200 mm and maximum length 280 mm.
SCV/6 can also be used with SCV/5A to give a medium length prop between 310 mm and 390 mm
Will fit SCV/3, SCV/8, SCV/7, etc.
SCV/6A - £36.00
SCV/6 - £36.00
SCV/6 - £36.00

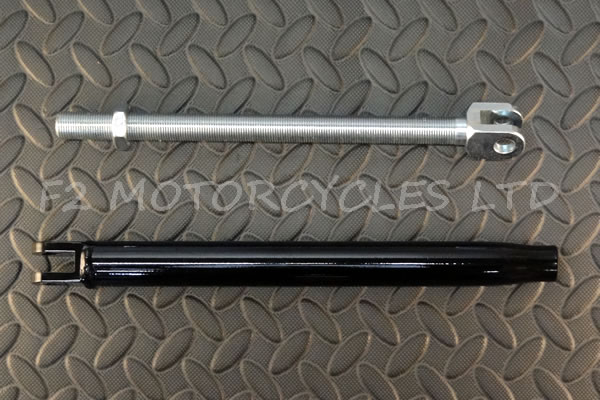

LONG ADJUSTABLE PROP
SCV/5 long prop total length 325 mm
SCV/5A long adjuster total length 285 mm
SCV/5 and SCV/5A combined eye to eye minimum length 360 mm and maximum length 560 mm.
Will fit SCV/3, SCV/8, SCV/7, etc.
SCV/5A - £48.00
SCV/5 - £48.00
SCV/5 - £48.00

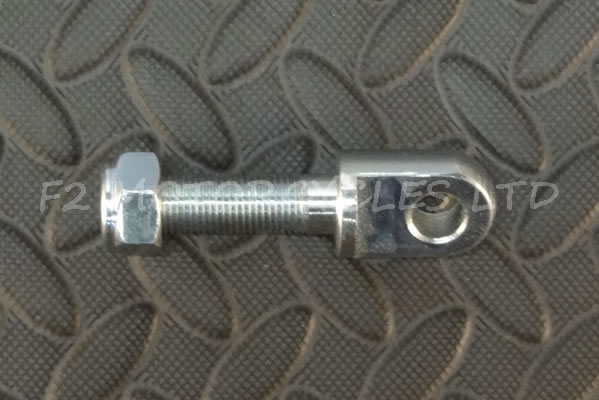

50mm x M14 EYEBOLT - VELOREX
Thickness of the eye 11.90 mm
Hole in eye 12.00 mm (for M12 bolt)
Diameter of shank 14.00 mm
Thread on shank M14
Length of shank including thread 50 mm
Length of threaded area 42 mm
SCV/2 - £26.40

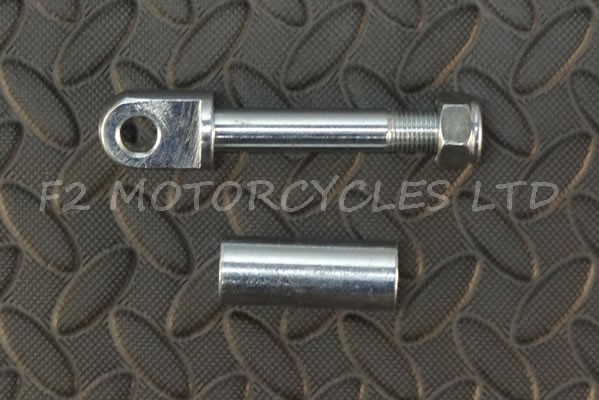

78mm x M14 EYEBOLT WITH SPACER
Thickness of the eye 11.90 mm
Hole in eye 12.00 mm (M12 bolt)
Diameter of shank 13.90 mm
Thread on shank M14
Length of shank including thread 78 mm
Length of threaded area 24 mm
Length of spacer 55 mm
SCV/7 - £31.20

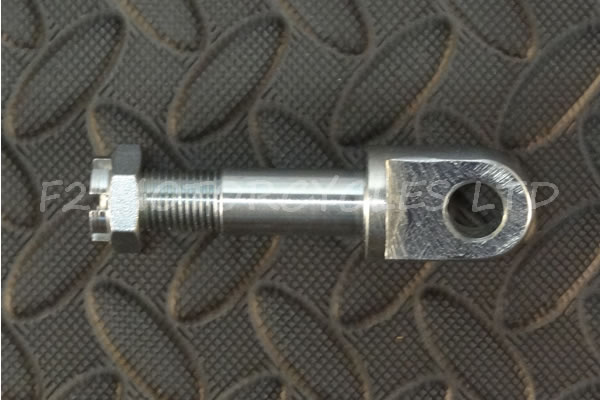

14.50mm x 55mm - VELOREX CHASSIS
Thickness of the eye 11.90 mm
Hole in eye 12.00 mm (for M12 bolt)
Diameter of shank 14.50 mm
Thread on shank M14
Length of shank including thread 55 mm
Length of threaded area 22 mm
Fits through pre drilled holes in standard Velorex UK chassis but can be used for other applications.
SCV/8 - £26.40

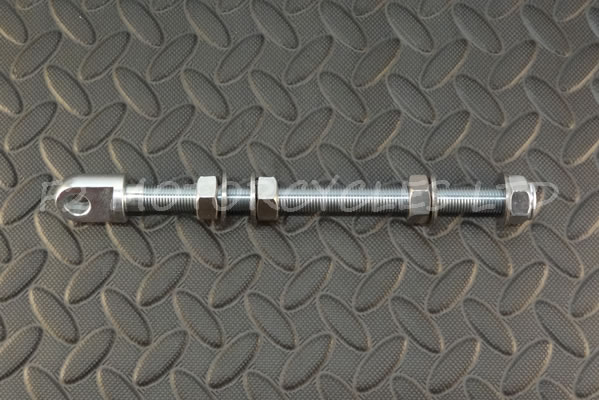

200mm x M14 EYEBOLT - VELOREX
Thickness of the eye 11.90 mm
Hole in eye 12.00 mm (for M12 bolt)
Diameter of shank 14.00 mm
Thread on shank M14
Length of shank including thread 200 mm
Length of threaded area 192 mm
Perfect for passing through two front engine mount plates.
SCV/11 - £36.00

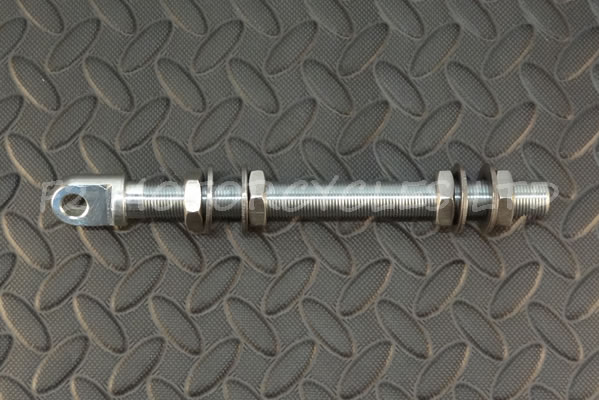

200mm x M18 EYEBOLT - VELOREX
Thickness of the eye 11.90 mm
Hole in eye 12.00 mm (for M12 bolt)
Thread on shank M18
Length of threaded area 200 mm
Use as is, or cut to length, super strong M18 diameter eyebolt. Supplied with locking nuts for use when passing through engine plates.
SCV/15 - £38.40

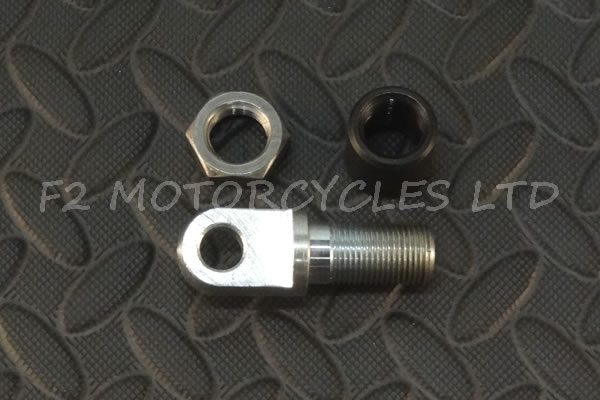

35mm x M18 EYEBOLT - WELD FITTING
Thickness of the eye 11.90 mm
Hole in eye 12.00 mm (for M12 bolt)
Thread on shank M18
Supplied with weld on blank with M18 female thread, used to weld to plates, or make your own arms. OD of weld on blank is approx 25 mm
SCV/14 - £30,00

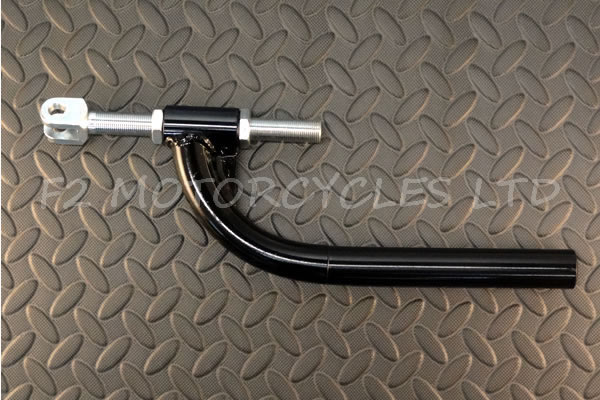

SWAN NECK - COMPLETE
The plain end fits in the front of the chassis of the all our sidecars to form the strong front lower mount. Supplied with adjuster and lock nuts. Standard swan neck has 100 mm offset
SCV/1 - £76.80

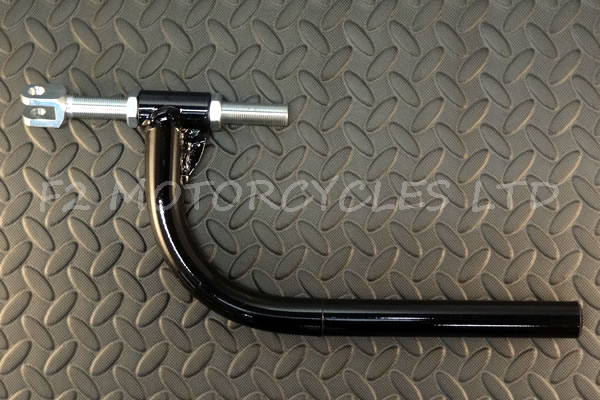

SWAN NECK - LARGE
The plain end fits in the front of the chassis of the all our sidecars to form the strong front lower mount. Supplied with adjuster and lock nuts. Large swan neck has 155 mm offset
SCV/1L - £79.20

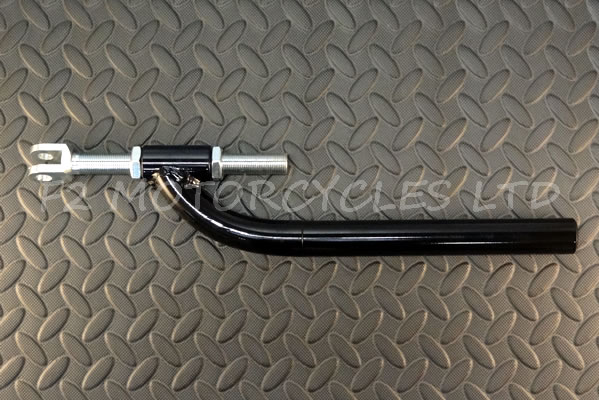

SWAN NECK - SMALL
The plain end fits in the front of the chassis of the all our sidecars to form the strong front lower mount. Supplied with adjuster and lock nuts. Small swan neck has 60 mm offset
SCV/1S - £76.80

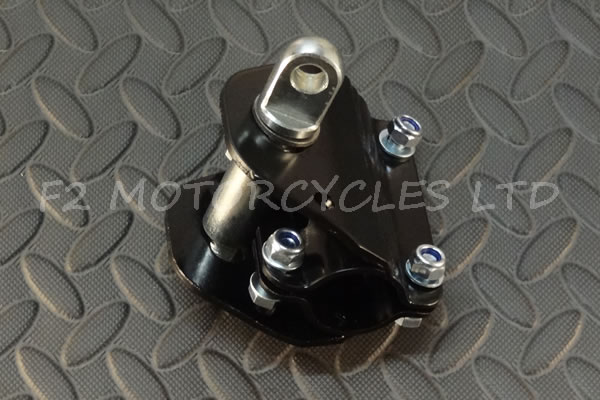

SLIDING MOUNT - LIGHTWEIGHT
Fits to the frame of the Velorex UK sidecar. Only suitable for fitting sidecars to very lightweight bikes or as an additional fitting when using 5 points. Velorex UK chassis is 35mm diameter. Supplied with eyebolt and spacer as shown.
SCV/9LW - £72.00

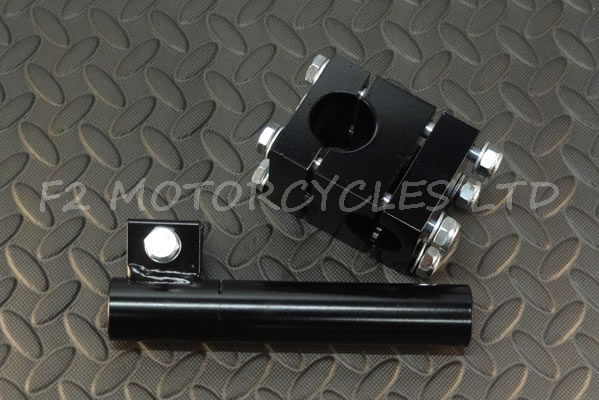

SLIDING MOUNT - HEAVY DUTY
Fits to the frame of the Velorex UK sidecar or any other 35mm diameter frame. This is the mount will take the Velorex UK swan neck, part SCV/1. This allows a much more rigid rear attachment point compared to the lightweight sliding mount.
SCV/9HD - £180.00

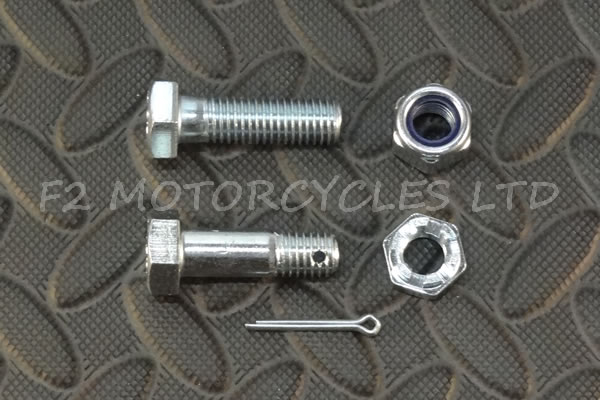

M12 - NUT AND BOLT
12mm diameter bolt supplied with nyloc nut or castle nut. Will fit SCV/3, SCV/4, SCV/5, SCV/6, SCV/7, SCV/8 also fits the Velorex eyebolts
SCV/BOLT - £2.40

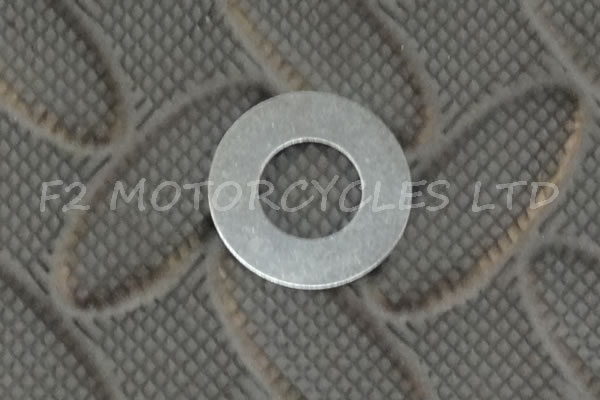

SHIM (M12 X 0.5 mm) Stainless.
Many people have asked if our props and adjusters (the fork end) can be used with English eyebolts. The Velorex eyebolts are 11.9 mm wide and have a M12 hole in them. English eyebolts are about 11.4 mm wide and have a hole in them just under 12 mm. At your own risk you can drill the English eyebolt to 12 mm, add this shim, then use an M12 bolt. We do not recommend using old fittings, but we understand people do.
SCV/SHIM - £1.50

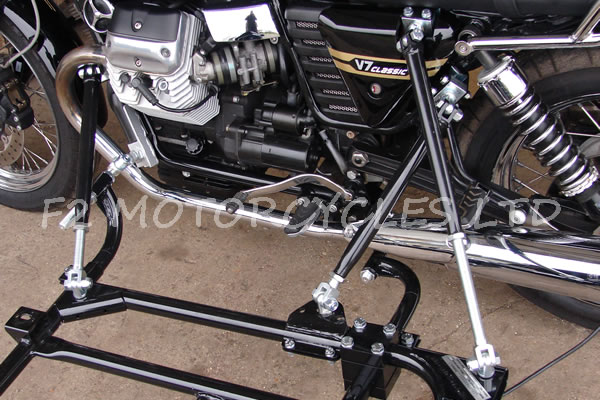

FITTING KIT - 5 POINT Universal
Please note the picture is for illustration only. Please read the contents list carefully. 2 x long props (SCV/5), 1 x short prop (SCV/6), 2 x long adjuster (SCV/5A), 1 x short adjusters (SCV/6A), 1 x lightweight sliding mount (SCV/9LW), 1 x heavy duty sliding mount (SCV/9HD), 2 x swan neck (SCV/1), 8 x bolts. 2 x eyebolts (SCV/8), 5 x frame clamps (SCV/3), 2 x 27mm nut (SCV/NUT27)
SCV/KIT - £795.00
FITTING KIT - Specific bike kits

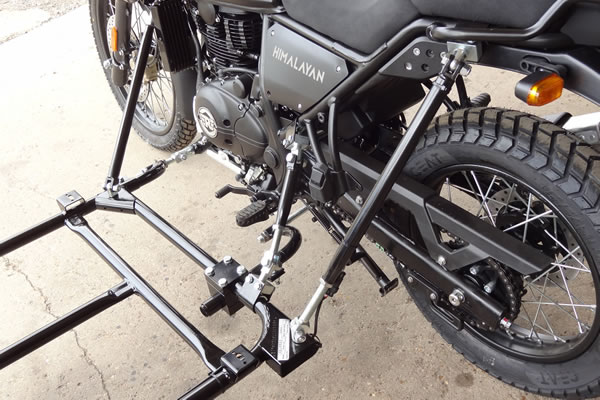

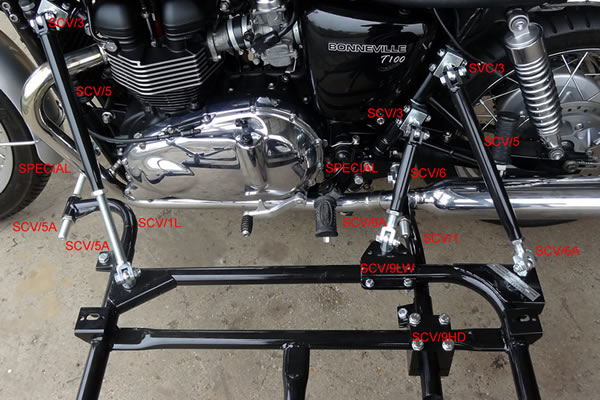

We offer complete kits for some motorcycles, this is a better option than the universal kit as all parts will be made for your bike and should not require any alterations. Models Include Triumph Bonneville, Royal Enfield 500 EFI, Mash 397cc roadster, Jawa 350 2-stroke,
FROM £845.00
